SPIRALS - WORM (SCREW) TRANSPORTERS



Spirals are produced of cold rolled strip C.0148 (AM DC 04 acc. to EN 10130) HT 32 1/8 hard and following characteristics:
  • outside diameter 60–590 mm
  • strip thickness 2–4 mm
  • maximum strip width 135 mm
  • step from 2/3 to 4/3 of outside spiral diameter

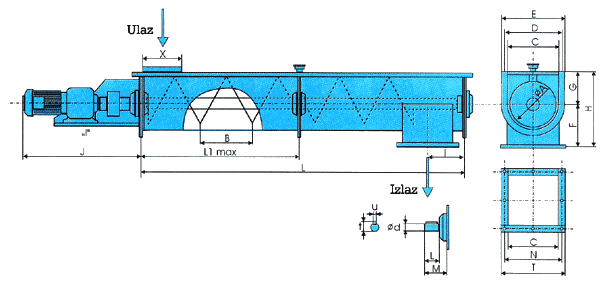

WORM (SCREW) TRANSPORTERS
They provide horizontal transport of powder substances, granulates, pellets and similar materials, according to necessities they can be used in oblique and vertical positions. They are largely applied in food industry (mills, oil refineries, breweries, sugar refineries, etc.), in agriculture, chemical and pharmaceutical industry, cement industry, mining and metallurgy industry, in steam power plants, etc. The transport capacity ranges between 11 to 289 m/h.
